JMG-Series Magnetic Level Indicators

Typical Magnetic Level Gauge Installation

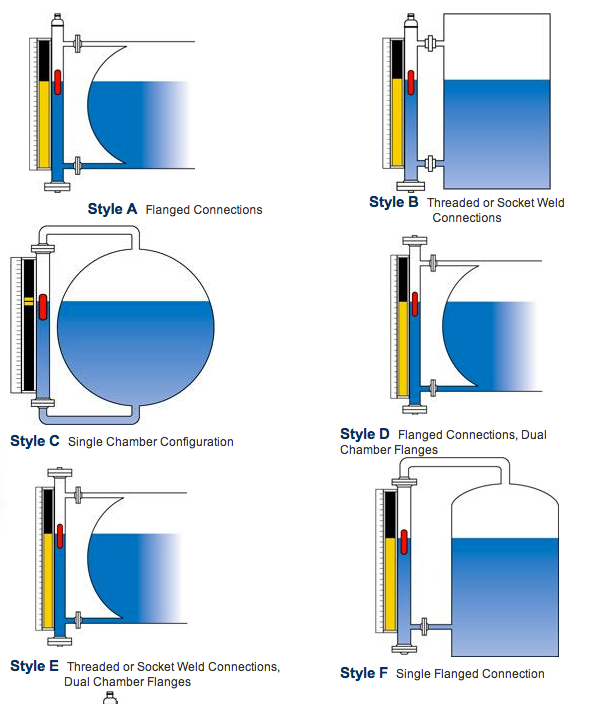

The drawings below illustrate some typical installation configurations for Jogler magnetic level gauges. Indicator styles are interchangeable, except for dual/interface applications, which require a modified single-tracker indicator. Custom configurations are available. Please consult the factory or Click Here to Contact us.

Untitled 1 jpeg.jpg
Untitled 2 jpeg.jpg
